MPPT Solar Charge Controller 150V 40A

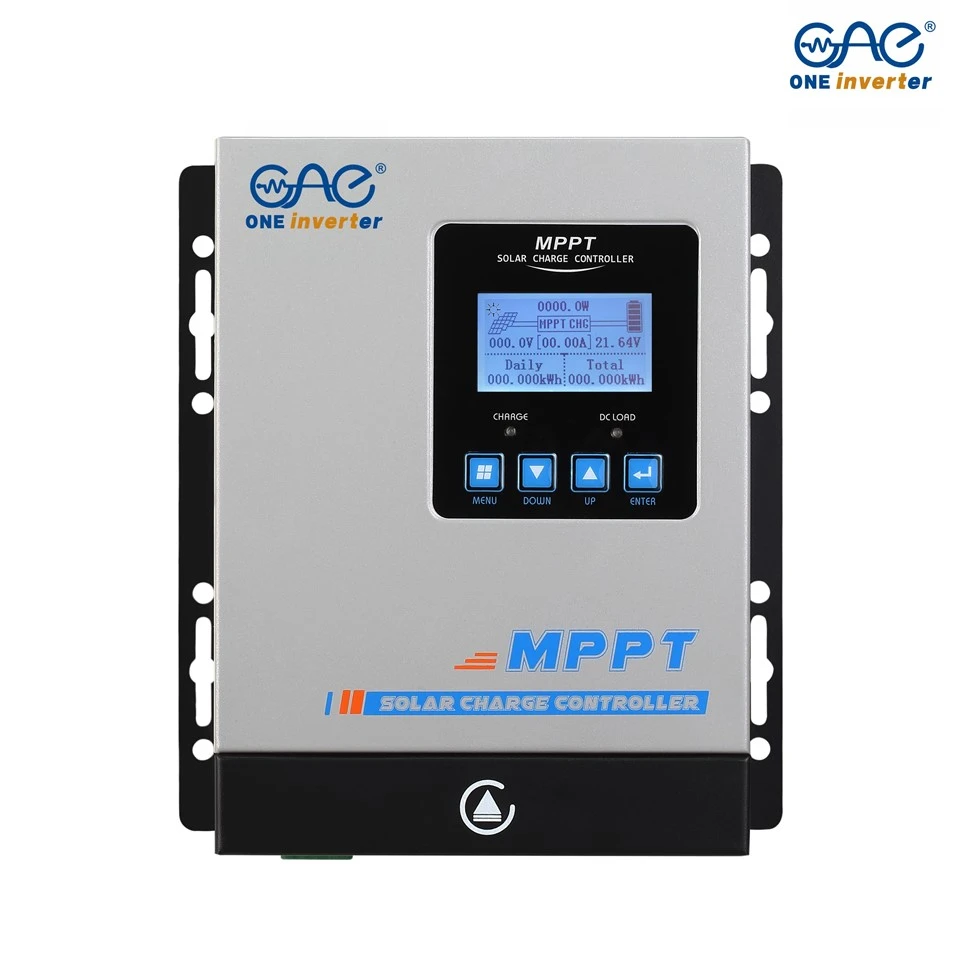

AP-40C MPPT Solar Charge Controller

To select an MPPT solar charge controller with the right current, you need to consider the specifications of the solar panel, the system voltage and the load requirements. The following are the key steps to evaluate:

1. Determine the maximum power output of the solar panel (W)
Check the nominal power of the solar panel, e.g. 100W, 200W, etc., and calculate the total system power. For example, if two 200W solar panels are used, the total power will be 400W.

2. Confirm the system voltage (V)
MPPT controllers support different system voltages, such as 12V, 24V or 48V. When selecting the system voltage you should consider the load requirements and the configuration of the battery system. High voltage systems are generally more efficient and suitable for high power applications.

3. Calculate the required regulator current (A)
Use the formula:
Regulator current = total power ÷ system voltage
For example, in the case of a 400W solar panel and a 24V system voltage: 400 ÷ 24 = 16.67A.
The selection should be slightly higher than the actual requirement to allow for a safety margin. It is recommended to select a 20A controller.

4. Consider environmental factors
In strong sunlight or cold weather, solar panels may exceed their rated output. It is therefore safer to increase the controller capacity accordingly and select a model that can handle higher currents.

5. Consider the technical characteristics of the controller
Choose a controller that supports continuous tracking and fast response MPPT technology to optimise efficiency.

Summary: Calculating the required current and considering the system voltage and environmental impact is key. Ensure that the controller has sufficient redundancy to operate efficiently in different situations.
