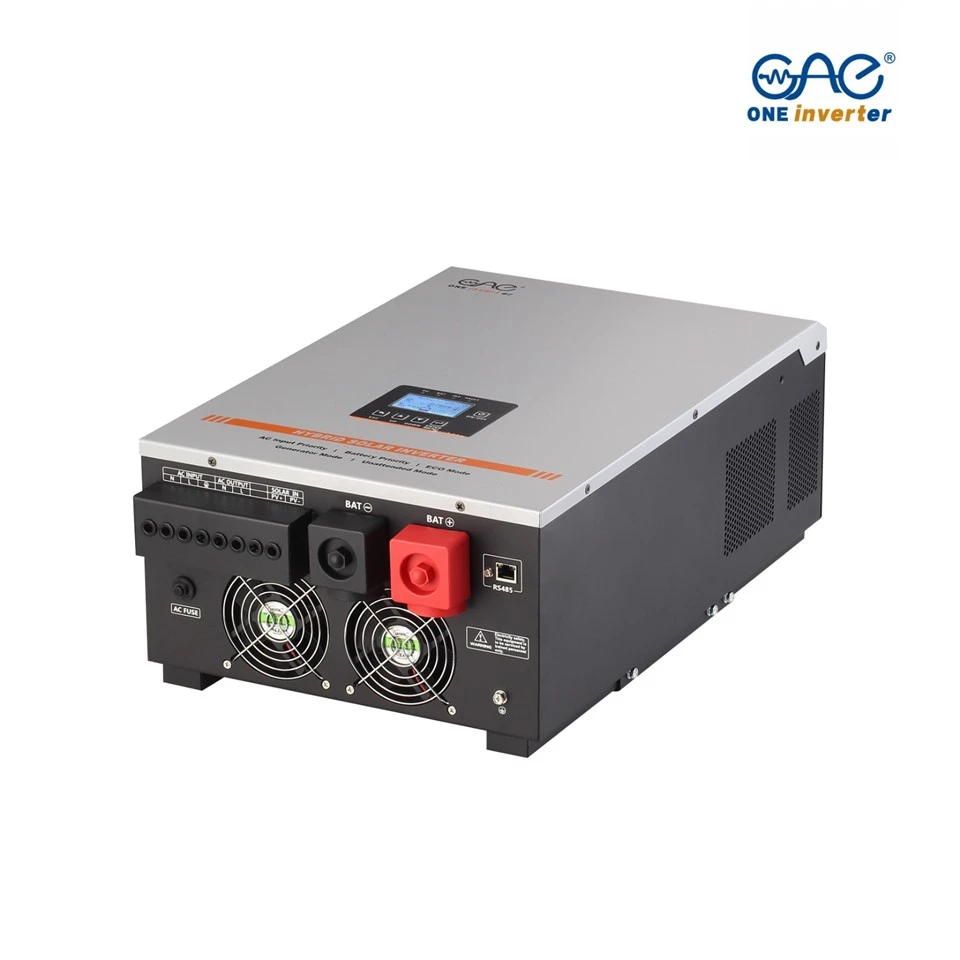

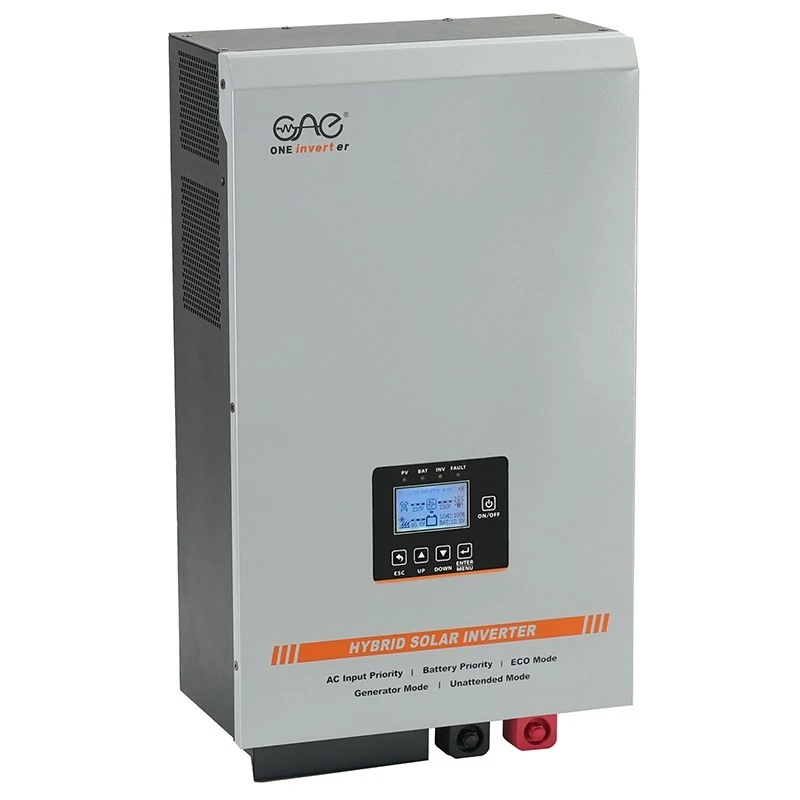

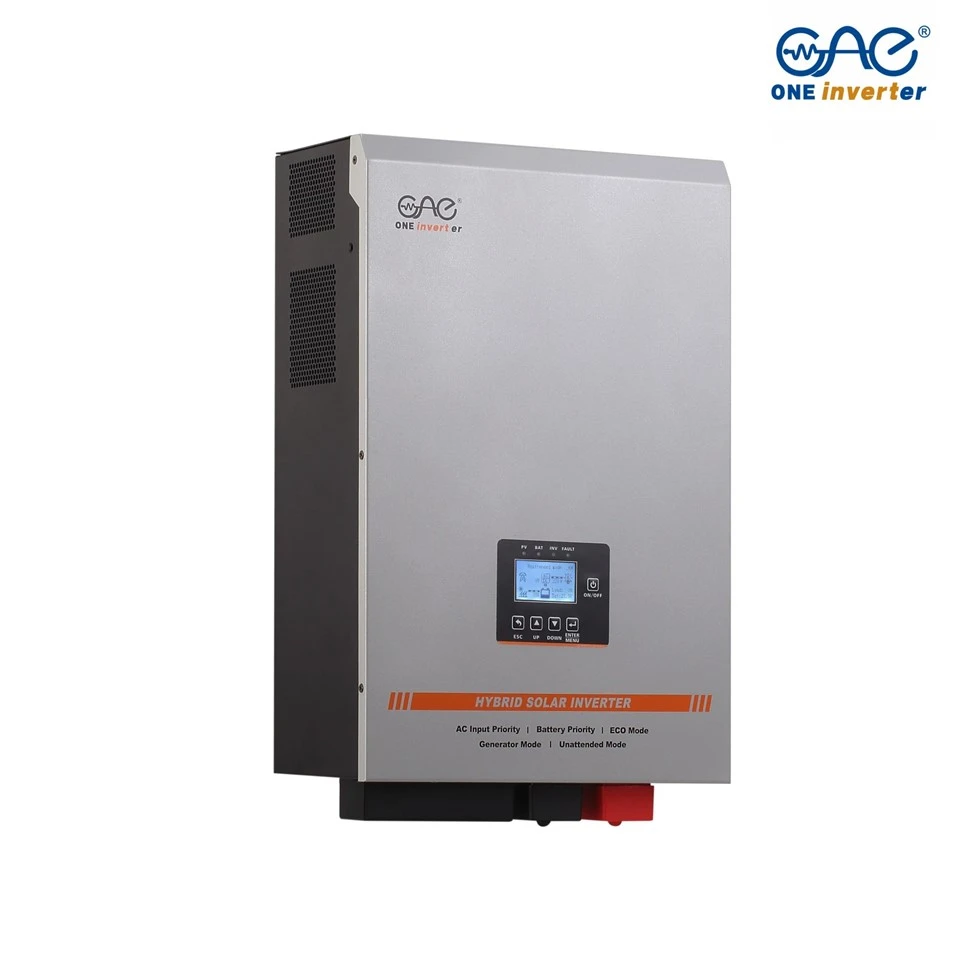

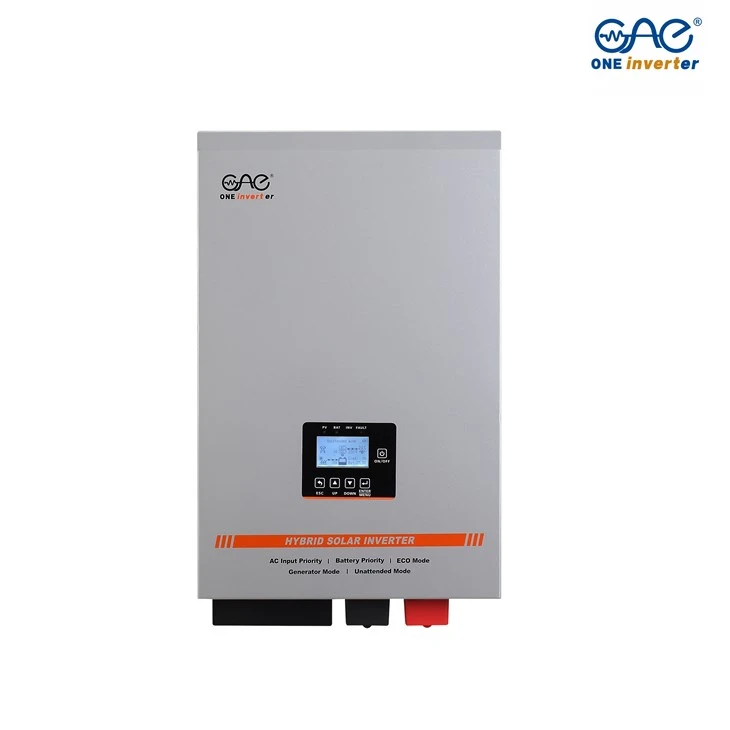

The TG200-602M80 hybrid solar inverter is a high-load-capacity energy conversion device designed for large residential villas and small off-grid commercial power stations. It features a low-frequency toroidal transformer design for superior load impact resistance.

The TG200-602M80 provides a stable 6 kW of continuous pure sine wave alternating current and has a surge power peak of 18 kW, enabling multiple heavy inductive loads to be driven concurrently without waveform distortion. The unit is compatible with both 24V and 48V battery banks and supports gel, SLA, AGM, water-based lead-acid and LiFePO4 lithium batteries. It features precise overcharge protection that cuts the charging current after a 60-second alarm if the battery voltage exceeds safety thresholds.

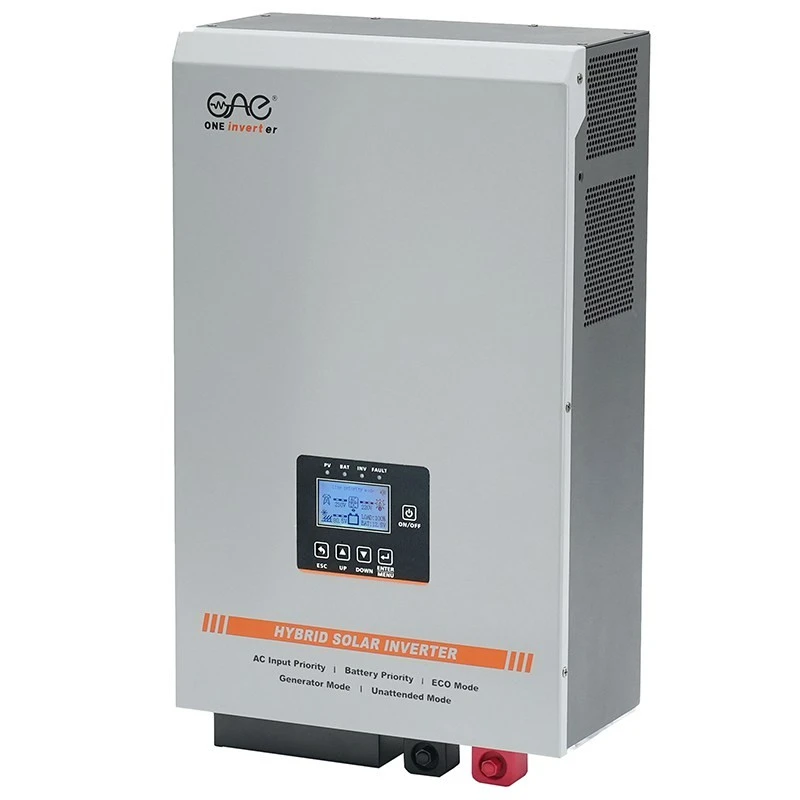

The integrated 80A MPPT solar controller can tolerate PV open-circuit voltage of up to 150 V DC and supports a maximum solar panel array of 4540 W under a 48 V setup, optimising solar charging efficiency under fluctuating sunlight. The 35 A adjustable AC mains charger acts as a backup charging channel during long rainy seasons and the ≤ 4 ms UPS transfer time eliminates the risk of power cuts for medical equipment, office servers, and other priority loads. Five customisable working modes allow users to prioritise the power supply: mains supply first, energy-saving ECO mode, battery power priority, generator input mode, and unattended automatic operation mode.

The internal AVR (automatic voltage stabiliser) maintains an output voltage that fluctuates by no more than ±3% under battery off-grid mode, safeguarding sensitive electronic devices. Standard RS485 ports support CAN protocol BMS communication to synchronise lithium battery operation data and an external Wi-Fi module enables remote monitoring via mobile applications.

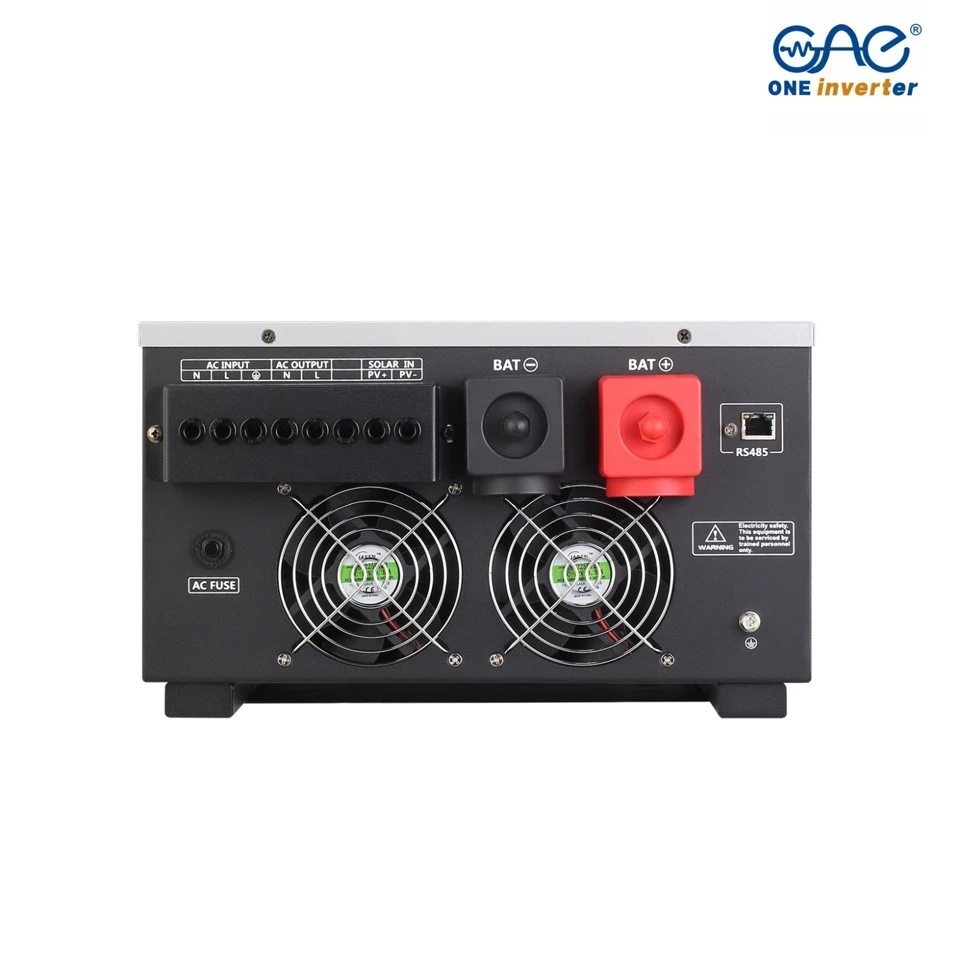

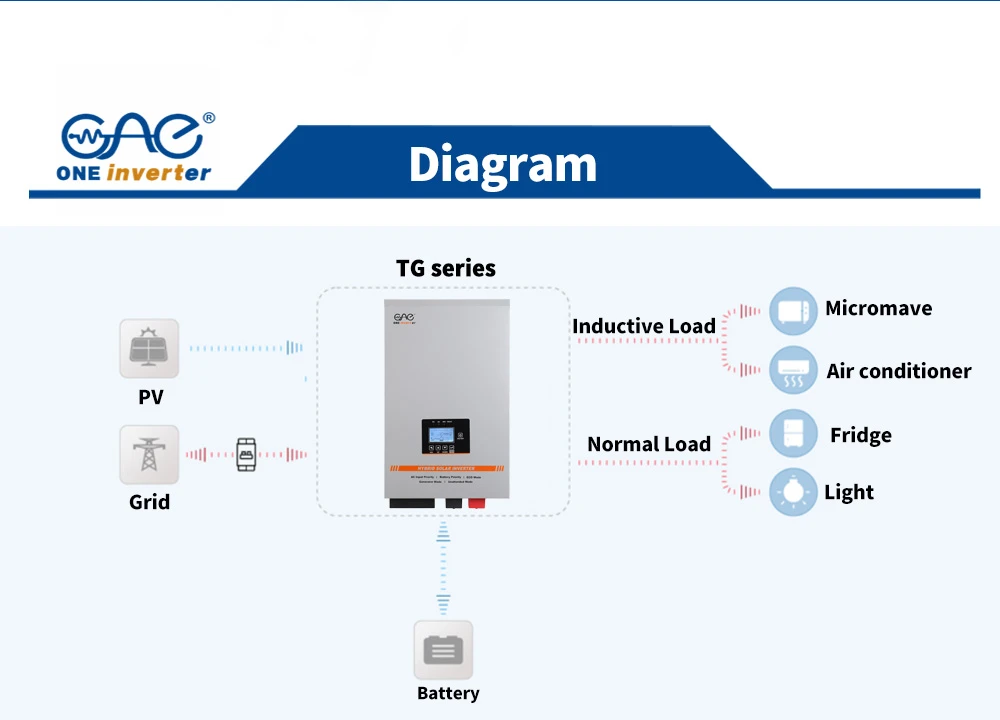

The inverter achieves over 85% transfer efficiency, reducing energy consumption loss. Comprehensive multi-layer safety protection is in place against overload, short circuit, overheating and reverse PV/battery wiring. It accepts dual AC input from the utility grid and diesel generator.
