The high-frequency inverter is an inverter circuit that uses a high-frequency transformer to boost the voltage. First, through high-frequency conversion technology, the low-voltage direct current is inverted into low-voltage alternating current. After being boosted by a high-frequency transformer, it is rectified into high-voltage direct current that is usually above 360V through a high-frequency rectification filter circuit, and finally 220V alternating current is obtained through the inverter circuit. for load use.

Since the high-frequency inverter adopts the high-frequency magnetic core material with small volume and light weight, the power density of the circuit is greatly improved, so that the no-load loss of the inverter power supply is small, and the inverter efficiency is improved. Usually, the high frequency inverter used in small and medium PVS, its peak conversion efficiency can reach more than 90%. The operating frequency of high-frequency transformers is generally above 1KHz, or even tens of KHz or hundreds of KHz, and the signal changes very fast and has sudden changes.

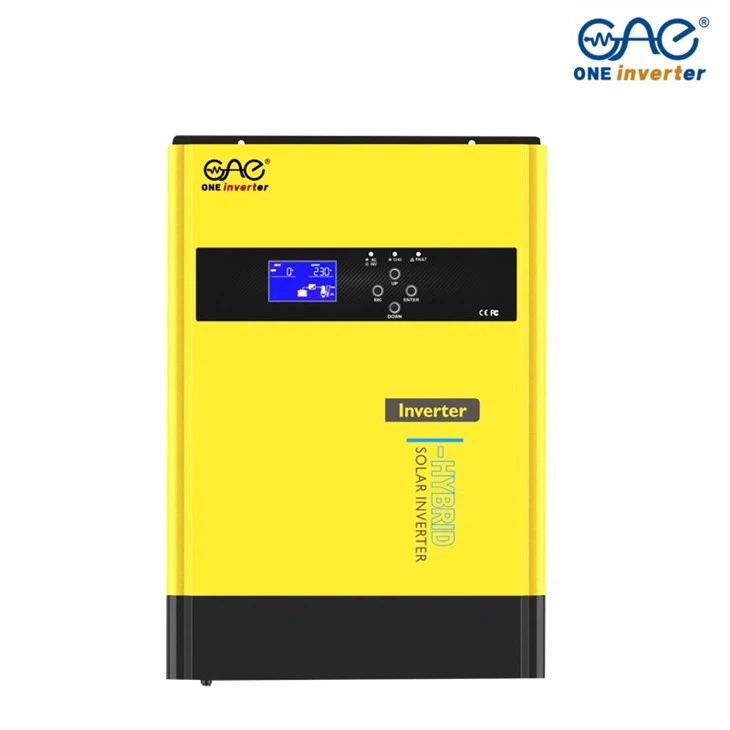

Model No.HMII-32224M80

Application：Home appliance/office equipment/solar system

Output wave form：pure sine wave

Output Type：Single phase

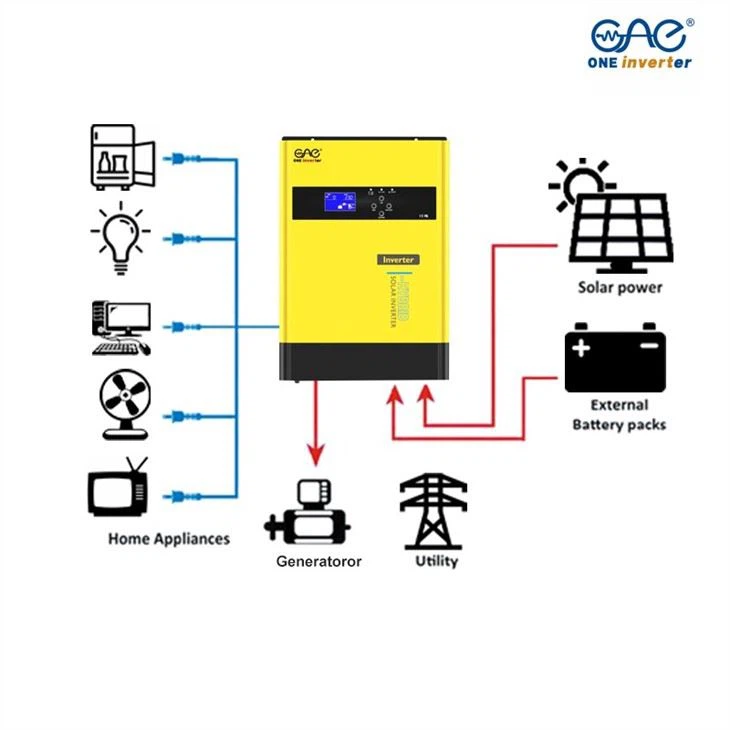

Working mode:ac input/battery/solar input

high frequency solar inverter
