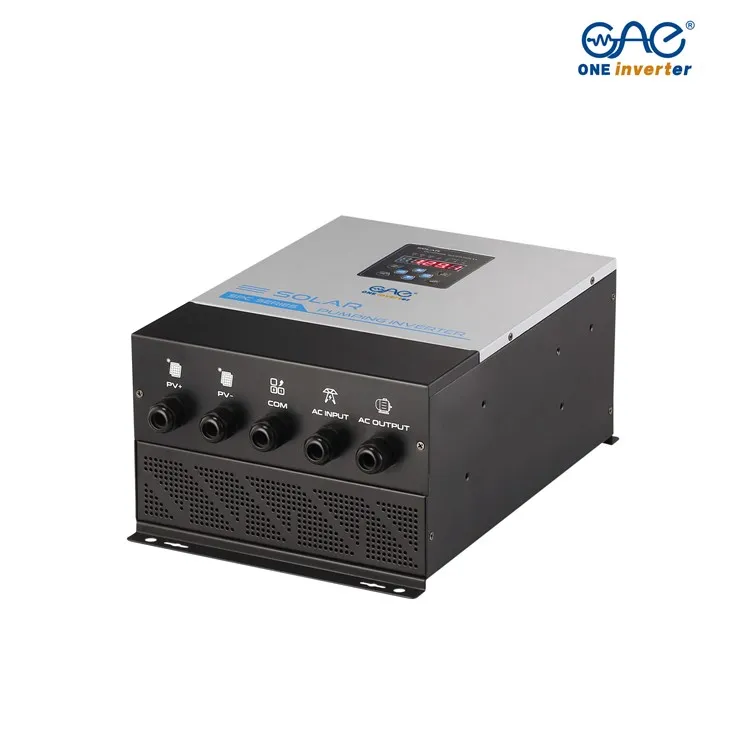

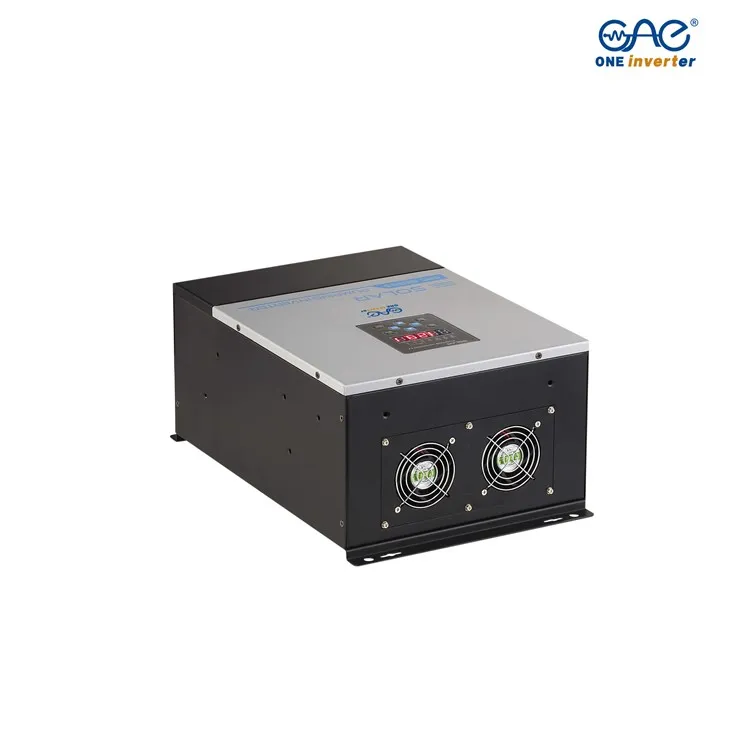

3phase 15kw solar pumping inverter
3 phase 15kw solar pumping inverter
Key features:
1. **Wide compatibility:** Our inverter supports a wide range of water pumps, making it versatile for different applications. Whether you're using submersible pumps, surface pumps or other types, it ensures reliable performance across different systems.#mppt 3 phase pump inverter
2. **Durability and longevity:** Built with high quality components and a robust design, the inverter is built to withstand harsh environmental conditions. It operates efficiently in extreme temperatures, ensuring long-term reliability in outdoor or remote locations.
3. **Smart protection features:** The inverter is equipped with multiple safety features such as overvoltage, overcurrent and overheating protection, ensuring that both the inverter and the pump are protected from potential damage.#15kwatt solar pump inverter
With our Solar Water Pump Inverter, you gain not only control, but also peace of mind, knowing that your water supply system is operating efficiently and sustainably. Whether you're upgrading an existing system or installing a new one, our inverter is the ideal solution for all your solar pumping needs.
If you are interested in our solar products, please feel free to contact us.
| MODEL | L11 | L13 | L33 | H33 |
| AC INPUT VOLTAGE | 220V(-15%)~240V(+10%) (1PH) | 220V(-15%)~240V(+10%) (3PH) | 380V(-15%)~440V(+10%) (3PH) | |
| MAX. DC INPUT VOLTAGE | 440V | 440V | 440V | 800V |
| START-UP VOLATGE | 220V | 220V | 220V | 300V |
| LOWEST WORKING VOLTAGE | 150V | 150V | 150V | 250V |
| RECOMMENDED DC INPUT RANGE | 200V~400V | 200V~400V | 200V~400V | 300~750V |
| RECOMMENDED MPPT VOLTAGE | 330V | 330V | 330V | 550V |
| RETED OUTPUT VOLTAGE | 220V(1PH) | 220V(3PH) | 220V(3PH) | 380V(3PH) |
| OUTPUT FREQUENCY RANGE | 0~400HZ | |||
| MPPT EFFICIENCY | 99% | |||
| ENVIRONMENT TEMPERATURE | 嗯嗯-10℃~+50℃,IF ABOVE 40℃,DERATE 2% FOR EVERY ADDITIONAL 1℃ | |||
| ALTITUDE | BELOW 1000M, IF ABOVE 1000M ,DERATE 1% FOR EVERY ADDITIONAL 100M | |||
| COOLING | FAN COOLING | |||
| SERIES | MODEL | RATED OUTPUT POWER | RATED INPUT CURRENT | RATED OUTPUT CURRENT |
| L11 (0.4-2.2KW) | SPC-0K4-L11 | 0.4KW | 6.5A | 4.2A |
| SPC-0K7-L11 | 0.75KW | 9.3A | 7.2A | |
| SPC-1K5-L11 | 1.5KW | 15.7A | 10.2A | |
| SPC-2K2-L11 | 2.2KW | 24A | 14A | |
| L13 (0.4-2.2KW) | SPC-0K4-L13 | 0.4KW | 6.5A | 2.5A |
| SPC-0K7-L13 | 0.75KW | 9.3A | 4.2A | |
| SPC-1K5-L13 | 1.5KW | 15.7A | 7.5A | |
| SPC-2K2-L13 | 2.2KW | 24A | 10A | |
| L33 (4-7.5KW) | SPC-0K4-L33 | 4KW | 17A | 16A |
| SPC-5K5-L33 | 5.5KW | 25A | 20 | |
| SPC-7K5-L33 | 7.5KW | 33A | 30A | |
| H33 (0.7-37KW) | SPC-0K7-H33 | 0.75KW | 3.4A | 2.5A |
| SPC-1K5-H33 | 1.5KW | 5A | 4.2A | |
| SPC-2K2-H33 | 2.2KW | 5.8A | 5.5A | |
| SPC-004-H33 | 4KW | 13.5A | 9.5A | |
| SPC-5K5-H33 | 5.5KW | 19.5A | 14A | |
| SPC-7K5-H33 | 7.5KW | 25A | 18.5A | |
| SPC-011-H33 | 11KW | 32A | 25A | |
| SPC-015-H33 | 15KW | 40A | 32A | |
| SPC-018-H33 | 18KW | 47A | 38A | |
| SPC-022-H33 | 22KW | 51A | 45A | |
| SPC-030-H33 | 30KW | 70A | 60A | |
| SPC-037-H33 | 37KW | 80A | 75A | |
