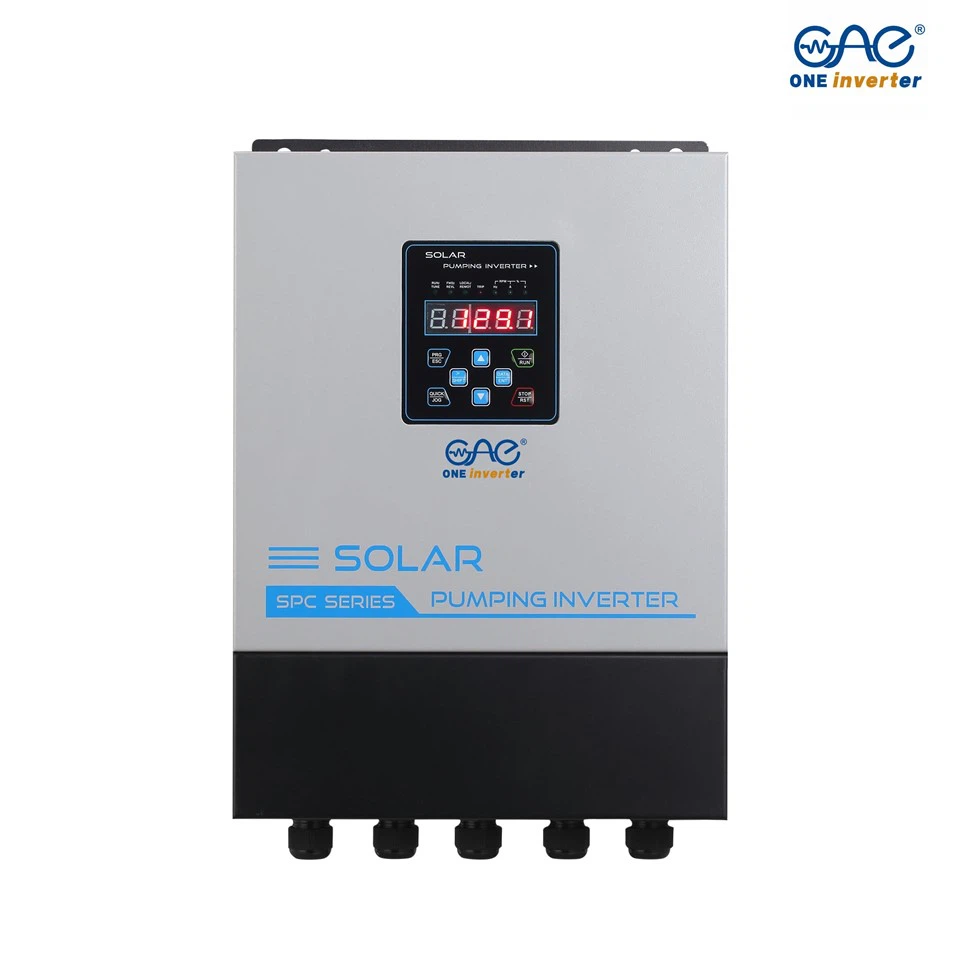

Solar Pump Inverter 22KW

SPC-22K0 Solar Pump Inverter

Solar pump inverter installation

1. Installing the solar panels
Fix the bracket: Secure the bracket to the roof or ground, making sure the tilt and orientation are correct.
Install the panels: Connect the solar panels in series or parallel and fix them to the bracket.
Connect the cables: Connect the solar panels to the inverter with special connection cables.

2. Install the inverter
Choose a location: Install the inverter in a well-ventilated and dry location, away from water and heat sources.
Secure the inverter: Use screws to secure the inverter to the wall or bracket.
Grounding: Connect the ground wire of the inverter to the ground wire for safety.

3. Connect the cables
Connect the solar panels: Connect the positive and negative wires of the solar panels to the positive and negative input terminals of the inverter.
Connect the load: Connect the AC output terminal of the inverter to the water pump.
Check the wiring: Carefully check all connections to ensure that they are tight and not loose.

4. Set the parameters
According to the manual: Set relevant parameters such as output voltage, frequency, etc. according to the instructions in the inverter manual.
MPPT tracking: If the inverter supports MPPT function, please turn on this function to maximise the use of solar energy.

5. Test operation
Switch on: After connecting all cables, switch on the inverter.
Check operation: Observe the operation of the inverter and the water pump to ensure that everything is normal.
