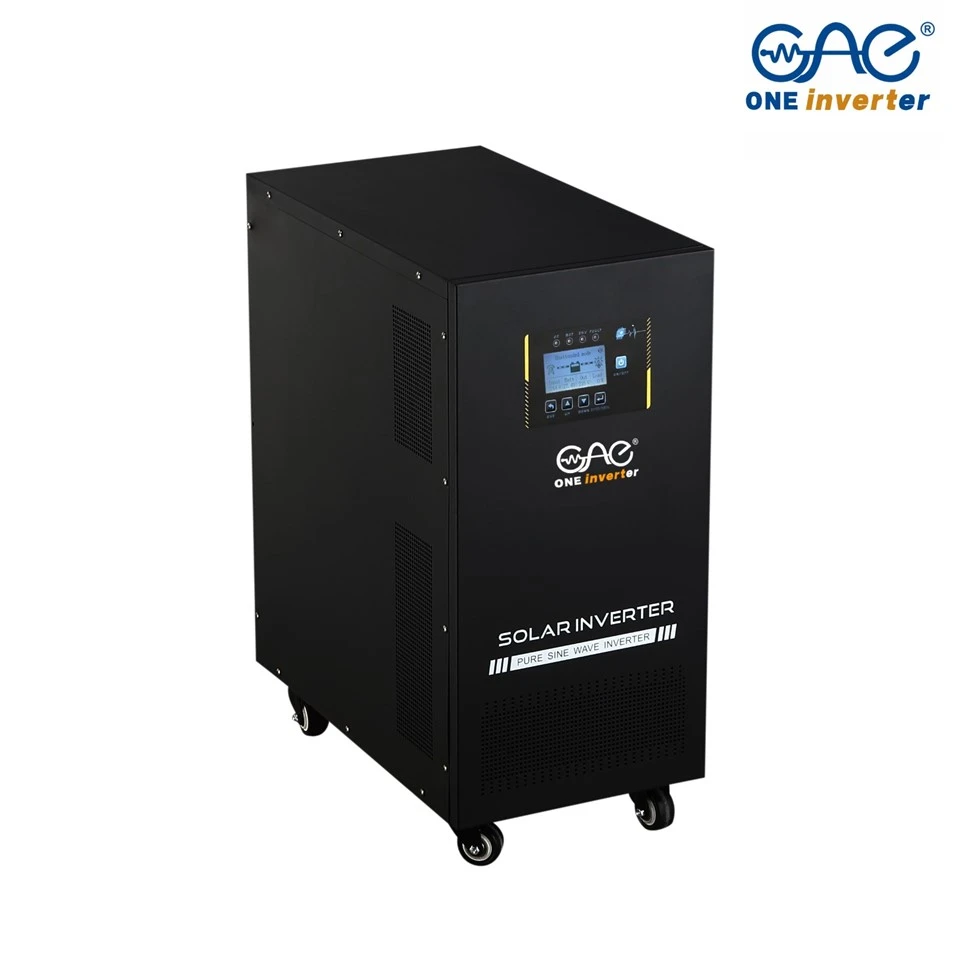

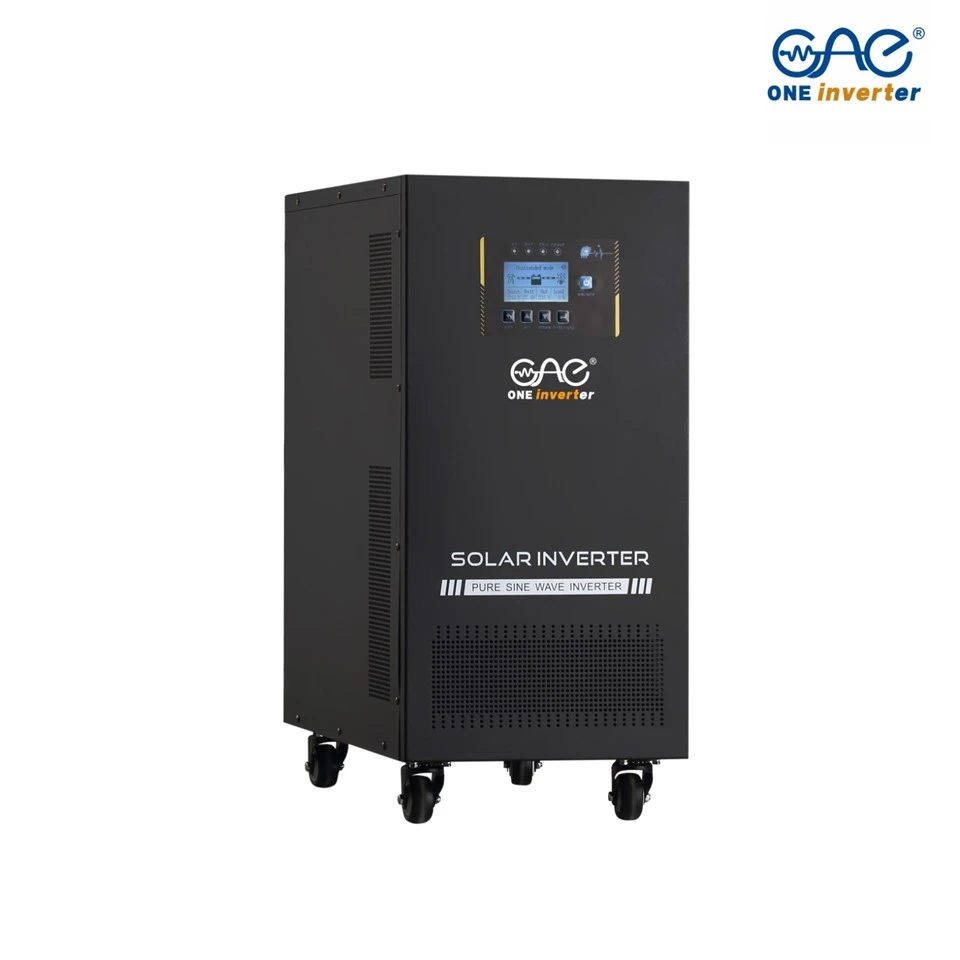

10KW Pure Sine Wave Inverter 48V introduction
This 10KW Pure Sine Wave Inverter 48V is a professional-grade power conversion device designed for industrial, commercial and large-scale off-grid applications.

Rated Power 10KW Surge Power 30KW

AC Input Voltage 220VAC AC Output Voltage 220VAC

48VDC for Battery 20A Maximum AC Charge Current

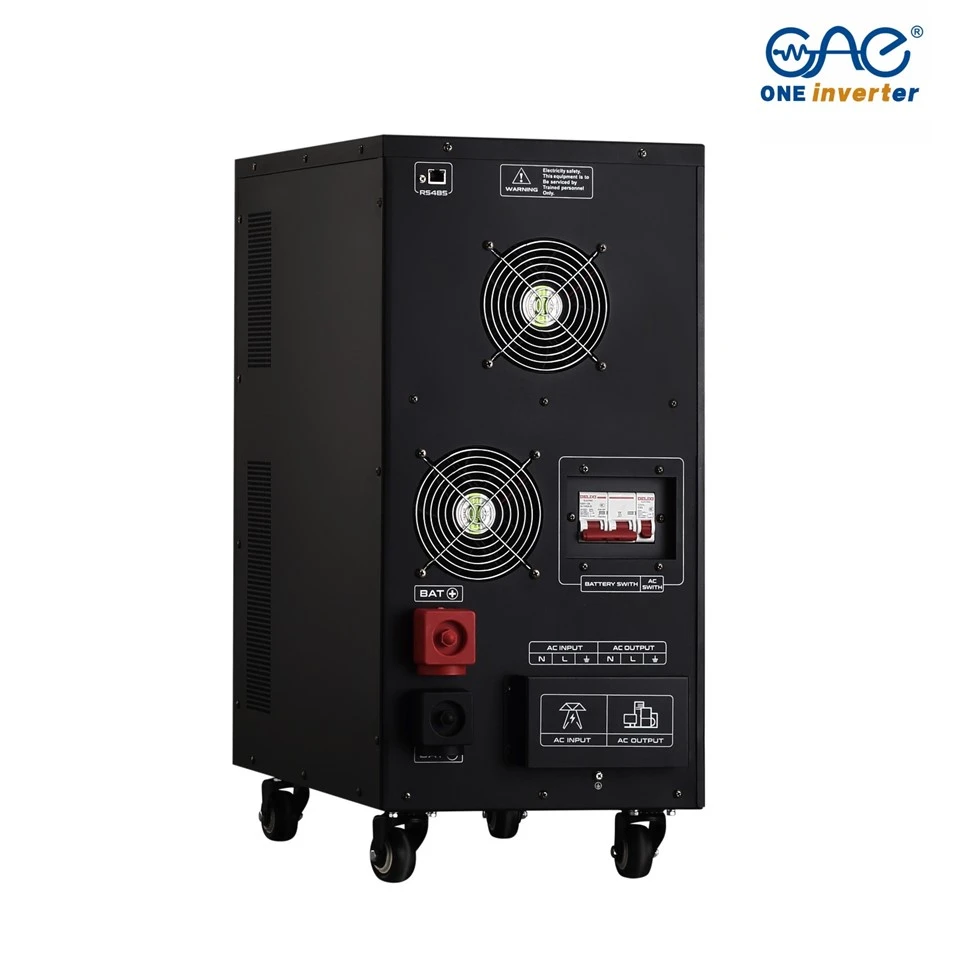

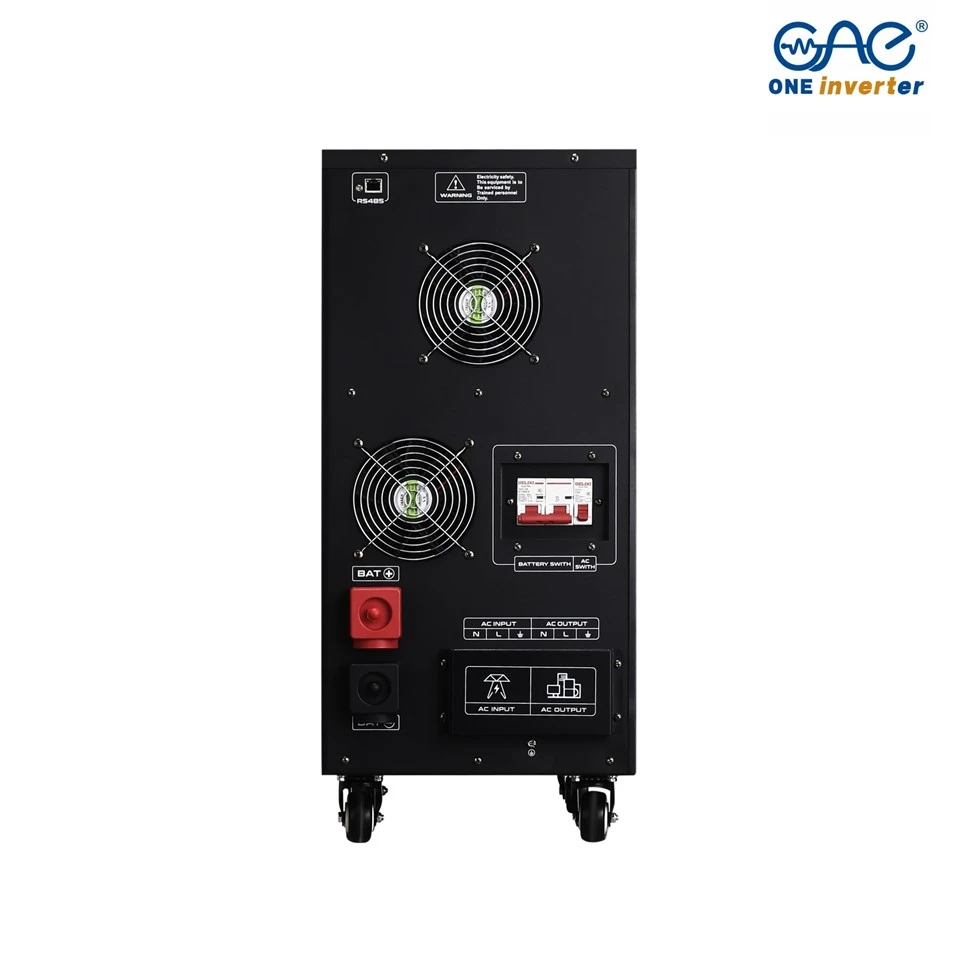

As the core component of the system, it can stably output pure sine wave AC (THD<3%), perfectly adapting to various sensitive electronic equipment and motor loads. The device has an instantaneous peak power output capacity of 30KW (lasting 10 seconds), which can easily cope with high current impact scenarios such as motor starting.The inverter design adopts a 48V battery system architecture and supports a maximum of 20A AC charging current to ensure that the battery pack can be quickly replenished in rainy weather. The conversion efficiency of the whole machine is as high as more than 85%, and it can still maintain an efficient conversion of more than 85% when running at full load. The unique intelligent temperature control system cooperates with multiple sets of cooling fans to work stably in an ambient temperature range of 0℃ to 60℃.

Recommended solar system configuration:

PV panels: 12 455W monocrystalline silicon panels (5.46KW total power)

Battery pack: 48V 400Ah lithium battery (19.2kWh energy storage)

Independent MPPT controller: 80A/150V 1 unit

Mains charger: 48V/20A 1 unit

The system is expected to generate an average daily power of about 22kWh (calculated based on 4 hours of equivalent sunshine), which can support 3P air conditioning to run continuously for 6 hours, or 10KW water pump to work for 2 hours.
