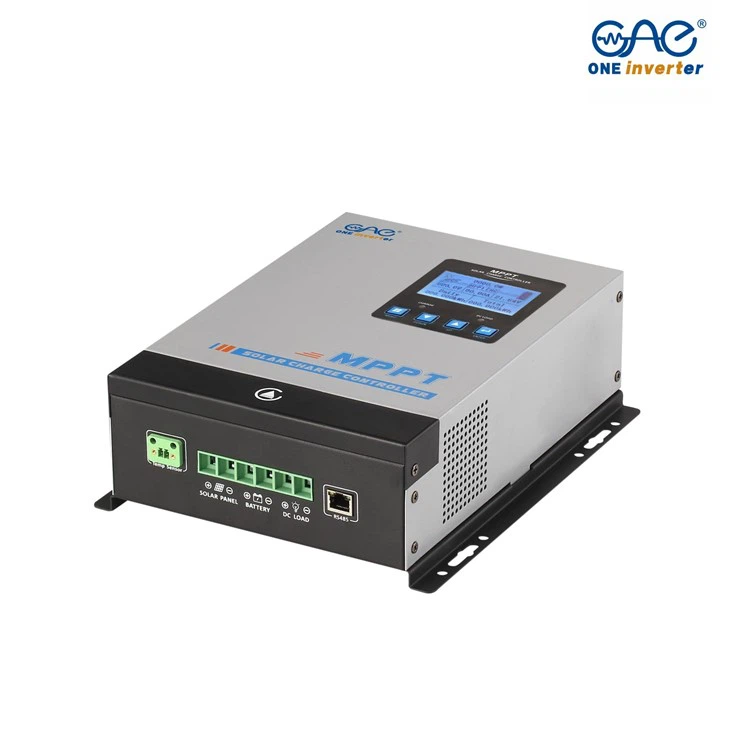

60A MPPT Solar Charger Array 7200W BAT48/96VDC

The main parameters of MPPT are rated operating voltage and maximum PV array power.The maximum photovoltaic module power is different from the maximum array power. Under different sunshine intensities, the module power can be constructed to be 1.2 times more than the array power, so that more electricity can be generated and the charging state can be entered earlier.

Three-stage charging, balanced charging, constant charging and floating charging, ensures and extends the battery life. In addition, low voltage protection and high voltage protection are also included.

Rated current: 60A

Maximum charging current: 62A

DC input Voltage: 12/24/36/48VDC

Maximum input voltage: 150V

Maximum PV array power: 7200W

Dimension (D*W*H): 365*290*160 MM

G.W.: 4.5 KGS
