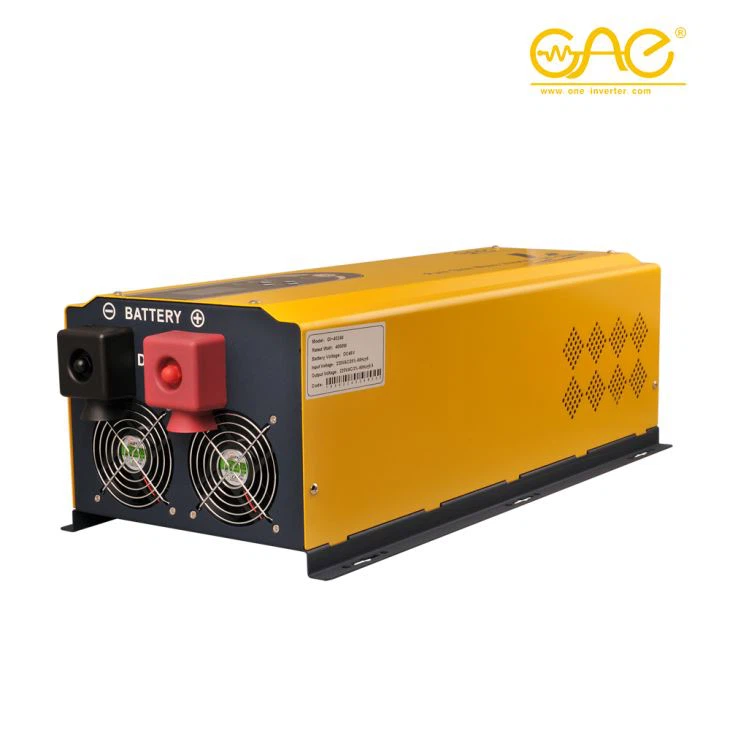

power inverter 4000w 24v 220v

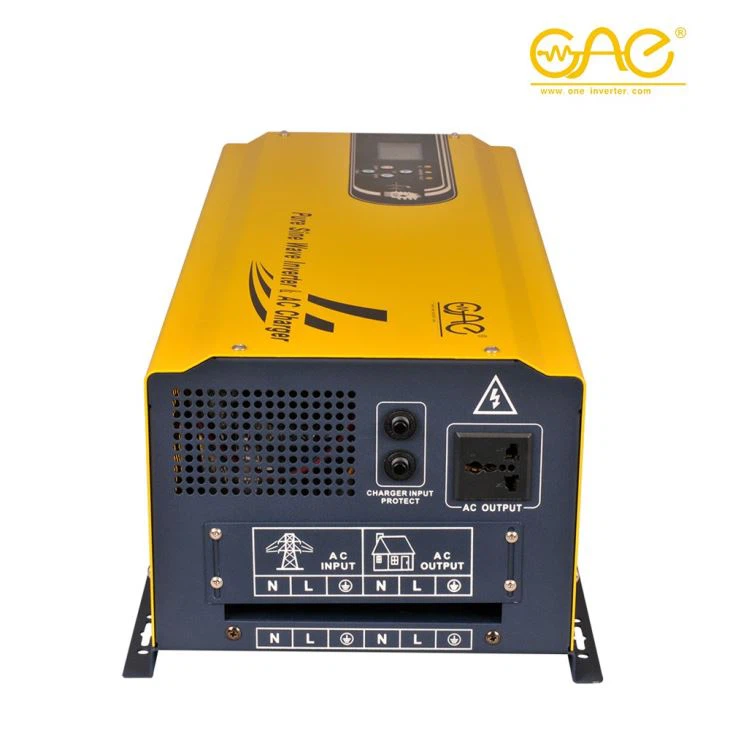

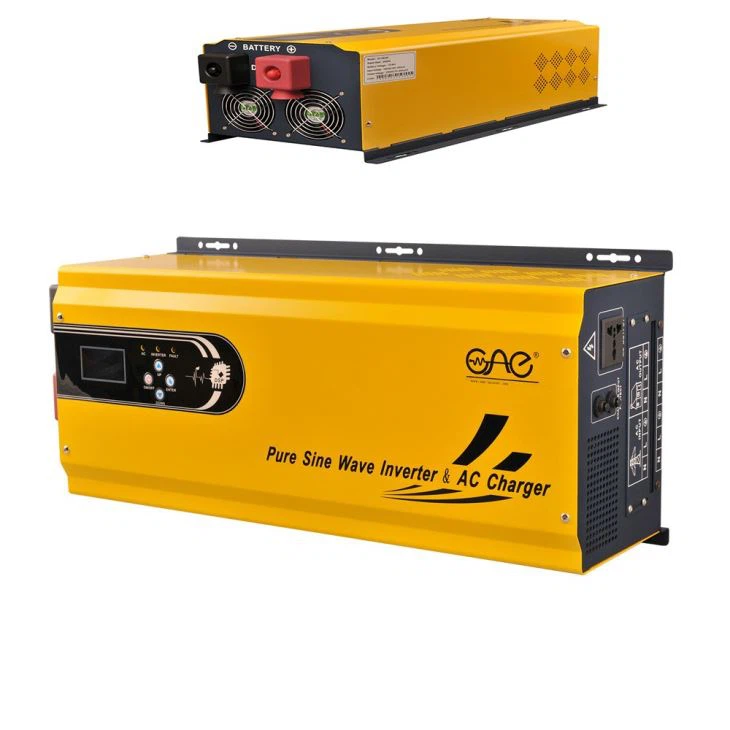

GSI 4kw Hybrid Solar Power Inverter With MPPT Controller 50A  for Solar Power Generator

Item Number: GSI-402M50

1, Pure sine wave inverter input circuit

The input of the inverter is usually DC, or the DC obtained by the rectifier filter of the mains. #4kw 48vdc to 220vac pure sine wave power inverter These DC include DC power grid, battery, photovoltaic cell and other ways to get DC. #solar inverter dc to ac Usually these electric energy can not be directly used as the input voltage of the inverter, but through a certain filter circuit and EMC circuit after the input of the inverter.

2. Inverter main circuit

The main circuit of inverter is a power conversion circuit composed of power switching devices, #inverter with charger the structure of the main circuit is divided into many kinds, different input and output conditions, the form of the main circuit is not the same, each power conversion circuit has its advantages and disadvantages, in the actual design should consider the most appropriate circuit topology as the main circuit structure.
