Attentionary Notes on the Use of Solar Inverters

Wiring: The connection between the solar panels, the inverter, and the battery is critical to the functioning of a solar energy system. #24v hybrid inverter Ensure that all wiring is correctly connected, tightened, and insulated to prevent faults and damages.

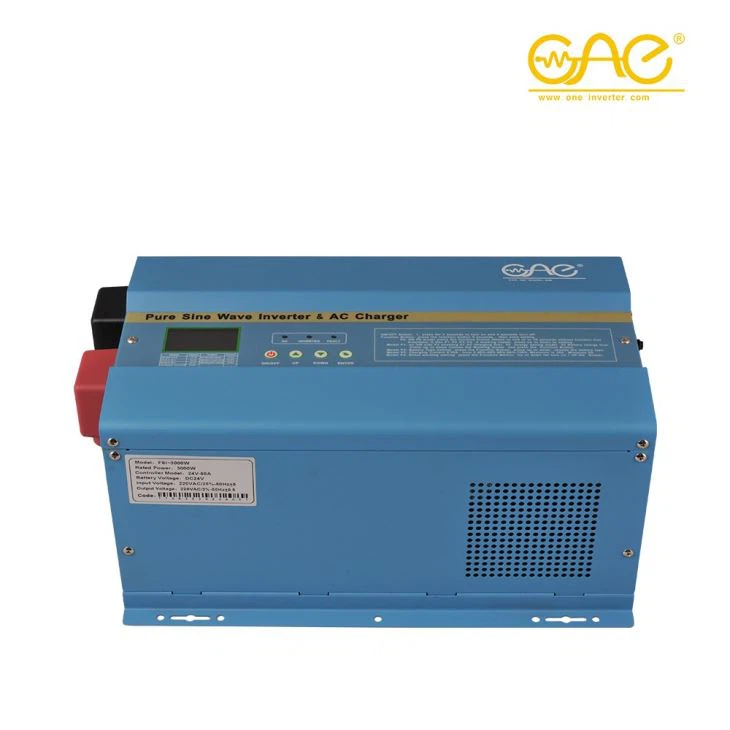

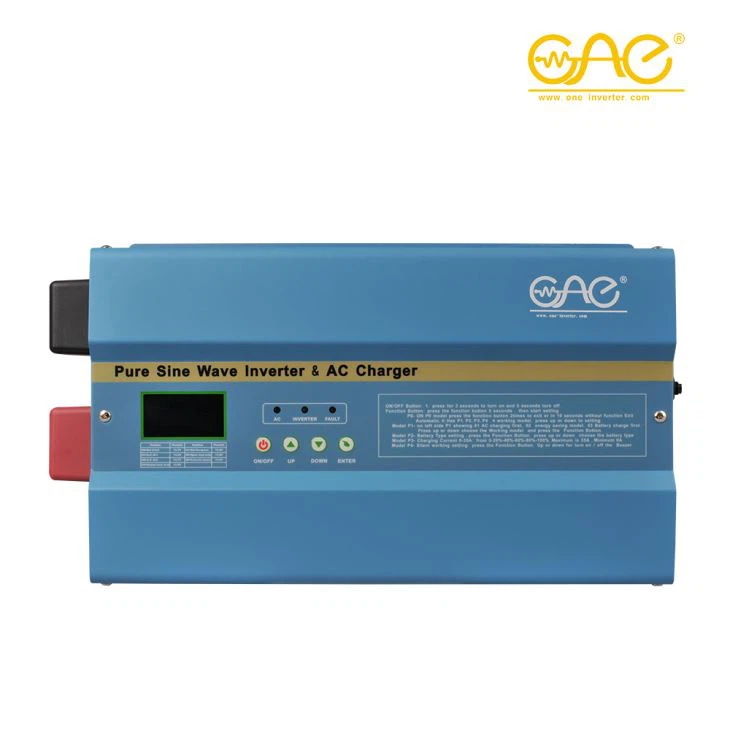

Power	3000w
Peak Power	9000w
MPPT	30a,50a

Circuit Topologies：Full-Bridge Type

Nature of Wave String：Sine Wave Inverter

Specification：46*24.5*20cm

Result fetched from effective value, not average value.

Photoelectricity isolation circuitry technology.
Switching power is supplied by the independent system.

ac frequency inverter 50hz 60hz

The sine wave inverter is a conversion device that converts direct current into alternating current.

The circuit that controls the turn-on and turn-off of the power switch is the control circuit.

The reason why the sine wave inverter can output a complete sine wave is because it adopts SPWM technology, which is more advanced than PWM technology.

Pure sinusoidal inverter: with stronger load effect and load capacity. #3000w pure sine wave inverter The equipment can be loaded with inductive load and any other type of common AC load.

Pure sine wave output, strong load capacity, wide application range.

High conversion efficiency, quick start, low no-load current.

Start in soft start mode to protect the start-up risk of electrical appliances.
